Parking lot control barrier arm gate operators for high traffic
Toll Gate Technical Data
|
Model |
WJDZE (speed 3~5s adjustable) |
|
|
Running Speed |
5S |
5S |
|
Boom-Type |
90° folding |
180° folding |
|
Max Boom Length |
5M |
4M |
1. Working temperature (motor):-35° C + 85° C
2. WorkingPower: 220V±10%, 110V±10%
3.Motor Power: 120WMAX
4.Humidity:彡90% RH
5. Distance of remote control:L>30M
6.Insulation Grade: F

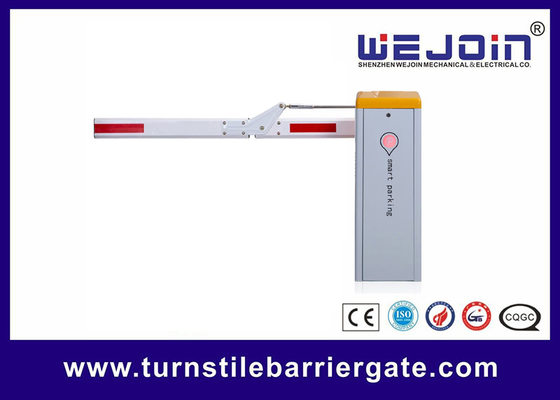

WEJOIN Eco-Grade Servo Barrier Gate WJDZE
DC Brushless Servo Motor
Higher Stability, Longer Service Life, and Easier Operation
Common Malfunctions and Solutions
1. When power-on, press the "UP" or "DOWN" button, there is a reaction on the boom.
1.1. Check up the power supply and the fuse.
1.2. Check if the remote controller matches the radio receiver; or check-up
the battery inside and then change it if it lacks power.
1.3. Check whether there is co-channel interference, and press the buttons
on the control, board to check if can work.
1.4. Checkup if the external protection circuit is failing or in protection
status. Check up the condition of photocell and loop detector are lighting.
2. The barrier gate closes half, and then stop learning, during the controller
self-test after power-on.
2.1. Checkup if the boom is installed, the barrier gate need to work with
boom if springs installed.
3. Fence boom or 6m boom lifts up automatically when closing.
4. Set DIP Switch 1 to be OFF position.
