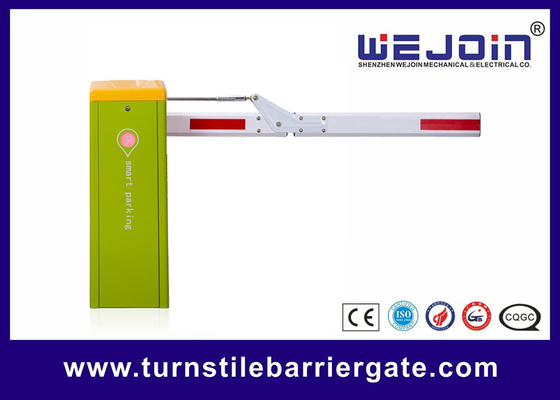

Barrier tollgate operators with folding arms for low headroom
Common Malfunctions and Solutions
When power-on, press the "UP" or "DOWN" button, there is a reaction on the boom.
1.1. Check up the power supply and the fuse.
1.2. Check if the remote controller matches the radio receiver; or check-up
the battery inside and then change it if it lacks power.
1.3. Check whether there is co-channel interference, and press the buttons
on the control, board to check if can work.
1.4. Checkup if the external protection circuit is failing or in protection
status. Check up the condition of photocell and loop detector are lighting.
Toll Gate Technical Data
2. WorkingPower: 220V±10%, 110V±10%
3.Motor Power: 120WMAX
4.Humidity:彡90% RH
5. Distance of remote control:L>30M
6.Insulation Grade: F
7: MTBF: 3 million times
8: Max Motor Power: 120W
Spring Color Distinction
| ∅4.5 | ∅5.5 | ∅6 | ∅6.8 |
| Red | Blue | Green | Yellow |
