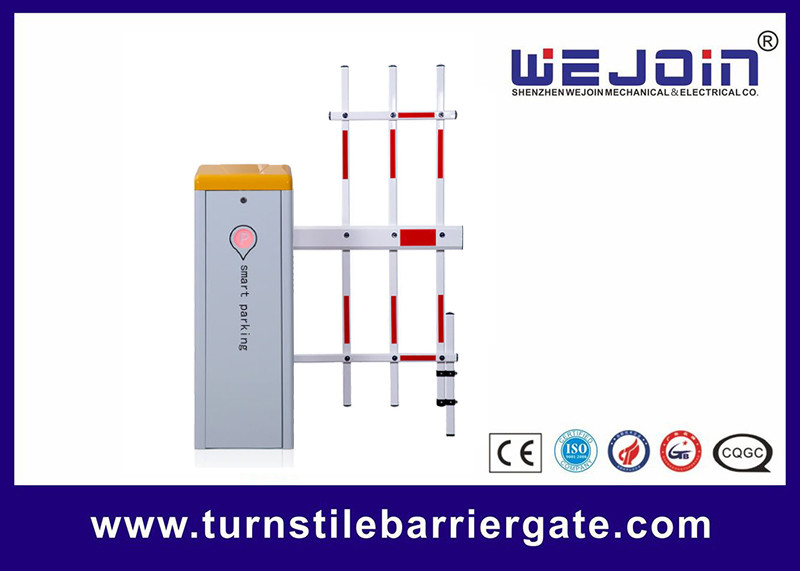

Barrier gate operators for commercial and industrial applications
Common Malfunctions and Solutions
Q: The barrier gate closes half, and then stops learning, during the controller self-test after power-on.
A.: Checkup if the boom is installed, the barrier gate needs to work with boom if springs are installed.
Q: Fence boom or 6m boom lifts up automatically when closing.
A: Set DIP Switch 1 to be OFF position.
DZE Series Barrier Gate Spring Selection Table
| Boom-Type |
Boom Length Meter: M |
Spring Diameter ∅ (mm) |
| Straight Boom without Rubber | 6 ≥ L ≥ 4.8 | ∅5.5 + ∅4.5 |
| 4.8 > L ≥ 3.5 | ∅5.5 | |
| 3.5 > L ≥ 2.5 | ∅4.5 | |
| Straight Boom with Rubber | 6 ≥ L ≥ 5.3 | ∅6.8 + ∅4.5 |
| 5.3 ≥ L ≥ 4.3 | ∅5.5 + ∅4.5 | |
| 4.3 > L ≥ 3.3 | ∅4.5 + ∅4.5 | |
| 3.2 ≥ L | ∅4.5 |
Toll Gate Technical Data
1. Working Power: 220V±10%, 110V±10%
2.Motor Power: 120WMAX
3. Humidity:彡90% RH
4. Distance of remote control:L>30m
5. Insulation Grade: F
6: Max Motor Power: 120W
