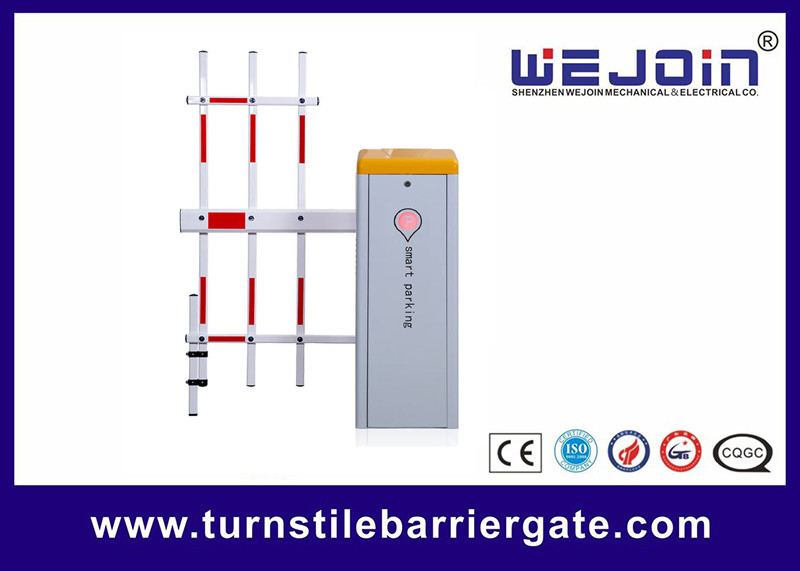

Management system toll gate for controlling access to parking lots
DZE Series Barrier Gate Spring Selection Table
| Boom-Type |
Boom Length Meter: M |
Spring Diameter ∅ (mm) |
|
Fence Boom, Two-levels |
4.5 ≥ L ≥ 4.3 |
∅6.0 + ∅5.5 |
|
4.3 > L ≥ 3.8 |
∅6.0 + ∅5.5 |
|
|
3.8 > L ≥ 3 |
∅5.5 + ∅4.5 |
|
|
3 > L |
∅4.5 + ∅4.5 |
|
|
Fence Boom, Three-levels |
4 ≥ L ≥ 3.8 |
∅6.8 + ∅5.5 |
| 5.3 ≥ L ≥ 4.3 | ∅5.5 + ∅4.5 | |
|
3.8 > L ≥ 3.3 |
∅6.0 + ∅5.5 |
|
|
3.3 > L ≥ 2.5 |
∅5.5 + ∅4.5 |
Warranty and Service Items
1. Free service is offered for component parts in one year warranty time, (not includes the barrier boom or remote)
2. Lifetime service with charge accordingly.
3. Technical questions are supported.
4. The below items and situations are not included in the range of free service:
4.1. The user does not follow the instruction and cause any damage of the product.
4.2. The power supply is not stable, over the range of permitted voltage, or not accordant to safety electric using standard.
4.3. The user installs or uses the product in the wrong methods, cause damage to the appearance of the product.
4.4. Natural disaster causes damage to the product.
4.5. Warranty time is over.
4.6. Service items are out of our promises.
Common Malfunctions and Solutions
Q: The barrier gate closes half, and then stops learning, during the controller self-test after power-on.
A.: Checkup if the boom is installed, the barrier gate needs to work with boom if springs are installed.
Q: Fence boom or 6m boom lifts up automatically when closing.
A: Set DIP Switch 1 to be OFF position.
