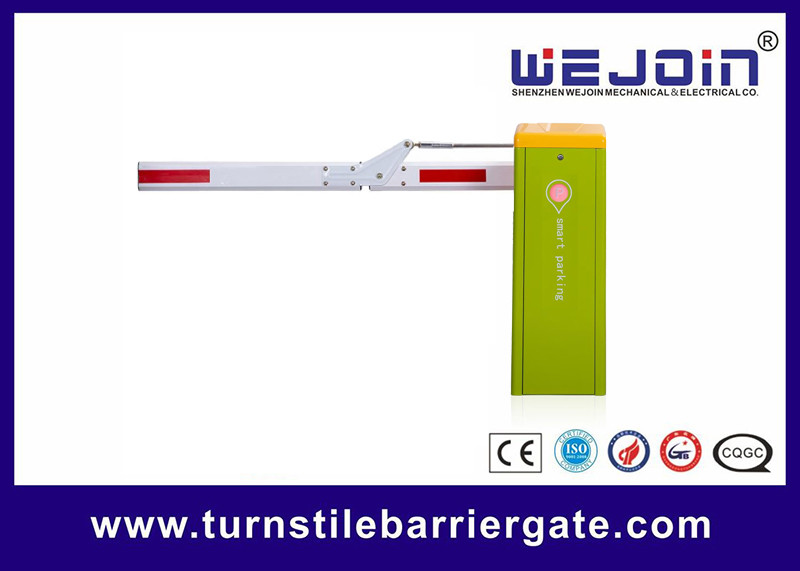

Electromechanical barrier gate operator for airports and public facilities
Warranty and Service Items
1. Free service is offered for component parts in one year warranty time, (not includes the barrier boom or remote)
2. Lifetime service with charge accordingly.
3. Technical questions are supported.
DZE Series Barrier Gate Spring Selection Table
|
Boom-Type |
Boom Length Meter: M |
Spring Diameter ∅ (mm) |
|
Articulated Boom |
5 ≥ L ≥ 4.3 |
∅5.5 + ∅4.5 |
|
4.3 ≥ L ≥ 3 |
∅4.5 + ∅4.5 |
|
|
3 > L |
∅4.5 |
Maintenance
1. Keep the barrier gate clean.
2. Check the joints every month in case of any loose parts.
3. Check the balance status of spring after the barrier gate running 300,000 times, and readjust the balance. And change new springs after running 500,000 times (or 12 months), to avoid spring breaking due to excessive fatigue.
4. Check the easily worn-out parts every half year and renew them.
5. Remote control distance will be shortened or not work in cases like big object screening, battery exhausting, extreme weather.
