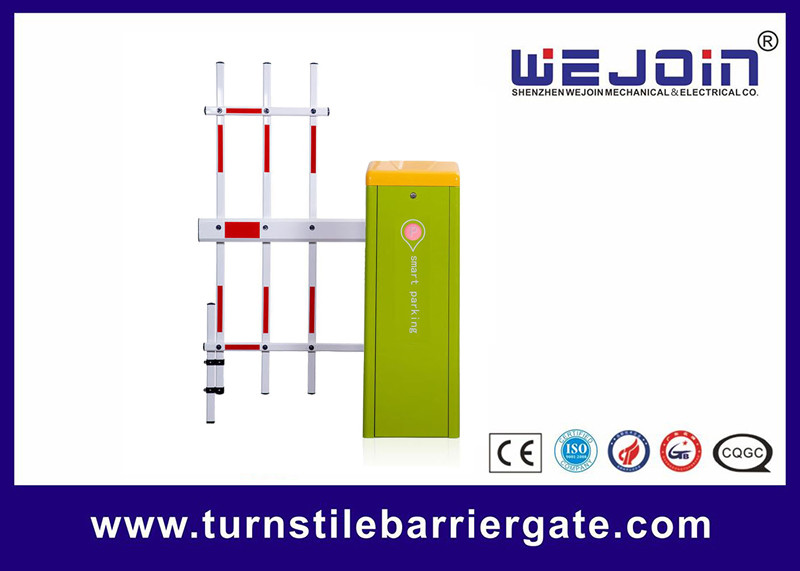

Manually controlled automatic barrier gate for two way traffic
DZE Series Barrier Gate Spring Selection Table
| Articulated Boom | 5 ≥ L ≥ 4.3 | ∅5.5 + ∅4.5 |
| 4.3 ≥ L ≥ 3 | ∅4.5 + ∅4.5 | |
| 3 > L | ∅4.5 | |
|
Fence Boom, Two-levels
|
4.5 ≥ L ≥ 4.3 | ∅6.8 + ∅5.5 |
| 4.3 > L ≥ 3.8 | ∅6.0 + ∅5.5 | |
| 3.8 > L ≥ 3 | ∅5.5 + ∅4.5 | |
| 3 > L | ∅4.5 + ∅4.5 | |
|
Fence Boom, Three-levels |
4 ≥ L ≥ 3.8 | ∅6.8 + ∅5.5 |
| 3.8 > L ≥ 3.3 | ∅6.0 + ∅5.5 | |
| 3.3 > L ≥ 2.5 | ∅5.5 + ∅4.5 |
Warranty and Service Items
1. Free service is offered for component parts in one year warranty time, (not includes the barrier boom or remote)
2. Lifetime service with charge accordingly.
3. Technical questions are supported.
Common Malfunctions and Solutions
1. When power-on, press the "UP" or "DOWN" button, there is a reaction on the boom.
1.1. Check up the power supply and the fuse.
1.2. Check if the remote controller matches the radio receiver; or check-up the battery inside and then change it if it lacks power.
1.3. Check whether there is co-channel interference, and press the buttons on the control, board to check if can work.
1.4. Checkup if the external protection circuit is failing or in protection status. Check up the condition of photocell and loop detector are lighting.
