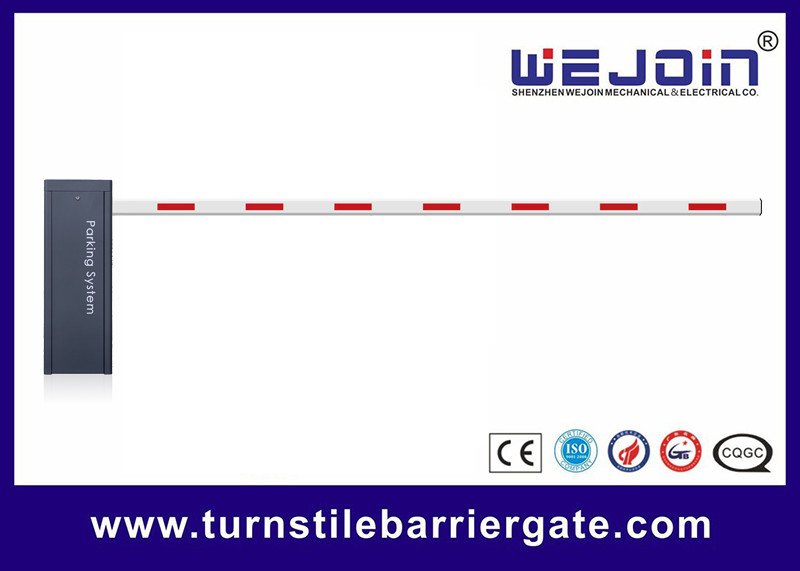

Strong durable and affordable automatic boom barrier gate
Functions & Features:
1. Manual release
2. Machine core with compression spring effectively avoids the accidents caused by spring break.
3. Die-casting aluminum alloy motor, precision, and good at thermal radiating.
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
6. reversing on an obstacle
Motor speed and boom type
|
Boom type |
Boom length (M) |
Opening time(S) |
|
Fence boom, two-level |
4.5M≥L |
6S |
|
Fence boom, three-level |
4M≥L |
6S |
Electrical adjustment, precaution, and code setting of remote control
1. Check whether the barrier gate is connected with the earth leakage circuit breaker and the motor and housing are connected to the ground before connecting to the power.
2. Check whether the “TYPE SELECT” is the same as running speed, for example, if the running speed of the barrier is 6 seconds, the “TYPE SELECT” must be “6 SEC”. (You find “TYPE SELECT” on the control panel.)
3. Traffic light socket: the barrier gate rise to the up limit, the green light will be on. For other positions, the red light is on. For the first time turn on the barrier gate power, no matter where the arm is, the traffic light keeps on red.
4. Reversing on obstacle: The arm will rise up if it comes across obstacles when falling.
5. Loop detector terminal: When a signal is sent from the loop detector, the barrier arm will rise up, when no signal, the barrier arm will fall down.
