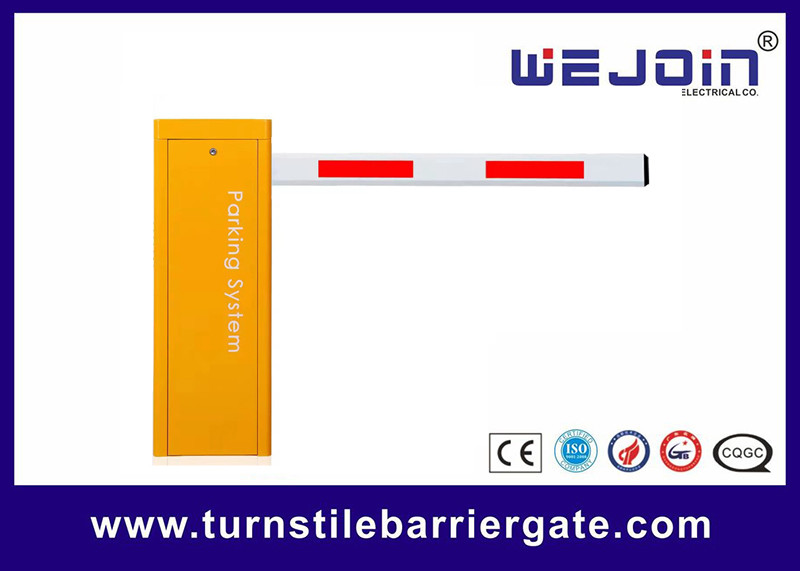

Parking Lot Arm Parking Barrier Gate boom security systems AC 220V AC 110V
Quick Detail:
Name: Boom Barrier Gate
Speed:3/6 second
Application :Park Lot
Feature: Manual release
Rated Power:180W
Certificate:CE, ISO,
Net Weight: 60KG
Voltage: AC220V, AC110V
Model Selection and Differences
| Model | Boom Shape | Max Boom Length | Speed |
| WJDZJ | Straight boom | 6m | 6 seconds |
| WJDZJ | Straight boom | 4.5m | 3 seconds |
| WJDZJ | 90 degree, Articulated boom | 5m | 6 seconds |
| WJDZJ | 90 degree, Articulated boom | 3m | 3 seconds |
| WJDZJ | 180 degree, Articulated boom | 5m | 6 seconds |
| WJDZJ | 180 degree, Articulated boom | 3m | 3 seconds |
Functions & Features:
1). Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually. When power on, the motor will work normally.
2). Machine core with strong and double springs, make the machine core works more steadily.
3). Die-casting aluminum alloy motor, precise and good at thermal radiation.
4). The crank and rod structure makes the boom run placidly.
5).Double safety limit switches (photoelectricity limit switch and motor memory sensor).
6). Reversing on obstacles.
7). Auto-closing.
8). Support the infrared photocell for anti-bumping function (optional).
9). Support loop detector (optional).
10). R&G light interface (AC220V, can support lamp with 40W).
11). Wire control (switch signal)/Remote control (418MHZ).
12). Digital limit, more precise.
13). Open, close control interface for parking system.
14). Provide limit state signal to parking system.
Applications:
Bi-directional Barrier Gate uses the first generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can work with parking system very well, and can be used in door and outdoor.
Specifications:
| Model | WJDZJ |
| Working Temperature | -40℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 180w |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 60kgs |
| Speed | 3S, 6S |
| Max boom length | 6 meters |
Why to choose WEJOIN Bi-directional Barrier Gate?
1. Bi-directional Barrier Gate solves the problem of left-installed and right-installed. Due to the same appearance of the two sides of the housing, it can be installed on both side of the gate.
2. Bi-directional Barrier Gate uses the first generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. The clutch of the barrier gate is fixed inside the housing, which can be easily rotate manually without any clutch key; when the power is off, you just need to rotate the clutch by hand to raise the boom. Meanwhile, the exclusive balance device makes the barrier gate work more safely and conveniently.
4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 10000 units.
Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
