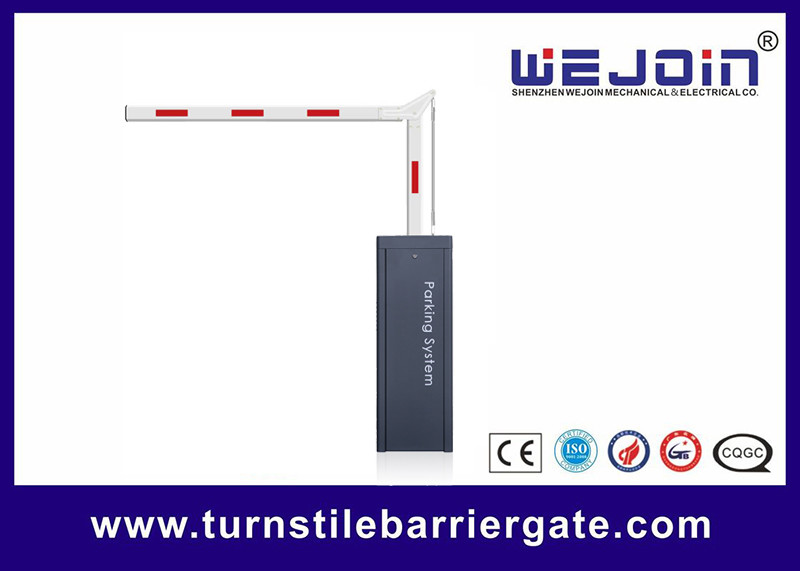

Professional Manual security Vehicle Barrier Gate
Quick Detail:
Description:
Model Selection and Differences
| Model | Boom Shape | Max Boom Length | Speed |
| WJDZJ | Straight boom | 6m | 6 seconds |
| WJDZJ | Straight boom | 4.5m | 3 seconds |
| WJDZJ | 90 degree, Articulated boom | 5m | 6 seconds |
| WJDZJ | 90 degree, Articulated boom | 3m | 3 seconds |
| WJDZJ | 180 degree, Articulated boom | 5m | 6 seconds |
| WJDZJ | 180 degree, Articulated boom | 3m | 3 seconds |
| WJDZJ | Two-level, fence boom | 4.5m | 6 seconds |
| WJDZJ | Three level, fence boom | 4m | 6 seconds |
Applications:
This product uses the latest mold design technology,die-casting manufacturing technology, and no clutch design. So the quality is reliable. And The mechanism uses the gear worm and crank link structure, which makes the boom operate quickly and steadily. And the maintenance will be easy and convenient.
Functions & Features:
1). Wheel manual release. In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually. When power on, the motor will work normally.
2). Machine core with strong and double springs, make the machine core works more steadily.
3). Die-casting aluminum alloy motor, precise and good at thermal radiation.
4). The crank and rod structure makes the boom run placidly.
5).Double safety limit switches (photoelectricity limit switch and motor memory sensor).
6). Reversing on obstacles.
7). Auto-closing.
Specifications
| Model | WJDZJ |
| Working Temperature | -35℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 180W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 60kgs |
| Speed | 3S, 6S |
| Max boom length | 6 meters |
Why to choose WEJOIN Manual Release Barrier Gate with LED Light Remiding?
1. Barrier Gate with LED screen uses the first generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
2. Barrier Gate with LED screen is a luxury model, specially designed to meet users with high requirements. The LED screen is in the middle of the barrier housing. With a specified software and data wire, you can input the detailed time information like, 20:00, Friday, June 30th 2013. And you can input any words you like, in English and Chinese. This barrier gate also has traffic light indication. Green and Red light remind people whether it can be transited or forbidden to transit.
3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. The clutch of the barrier gate is fixed inside the housing, which can be easily rotate manually without any clutch key; when the power is off, you just need to rotate the clutch by hand to raise the boom. Meanwhile, the exclusive balance device makes the barrier gate work more safely and conveniently.
4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 10000 units.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; or please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
