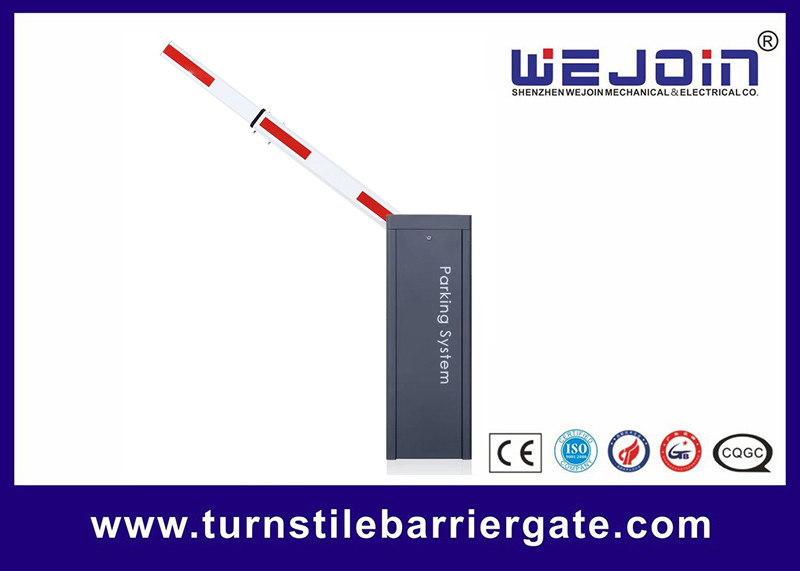

180w Barrier Arm Gate Parking Management Systems With Automatic Moisture
Applications:
The WJDZJ intelligent barrier gate is one types of our company’s products with the latest technological design to realize the automatic and intelligent operation. Further more, the unique clutch device and the balance device has made the barrier gate become more reliable.
Quick Detail:
Description:
Model Selection and Differences
| Model | Boom Shape | Max Boom Length | Speed |
| WJDZJ | Straight boom | 6m | 6 seconds |
| WJDZJ | Straight boom | 4.5m | 3 seconds |
| WJDZJ | Straight boom | 3m | 3 second |
| WJDZJ | 90 degree, Articulated boom | 5m | 6 seconds |
| WJDZJ | 90 degree, Articulated boom | 3m | 3 seconds |
| WJDZJ | 180 degree, Articulated boom | 5m | 6 seconds |
| WJDZJ | 180 degree, Articulated boom | 3m | 3 seconds |
| WJDZJ | Two-level, fence boom | 4.5m | 6 seconds |
| WJDZJ | Three level, fence boom | 4m | 6 seconds |
Functions & Features:
1. Open the barrier gate by the motor wheel when power is off and automatically reset when power is on.
2.Balanced boom running with a motor transmission of cranks and shafts.
3.Remote control to operate the barrier gate.
4.Auto-reverse when boom meets obstruction (only for barrier using the digital limit device)
5.Infrared photocells interface is available (need to install photocell device).
6.Loop detector interface is available (need to install loop detector).
7. Well-integrated with car parking system equipment, with wire control (must be dry contact signal).
8.Interface for the traffic light,dry contact output (traffic light must be less than 10A)
9. Offering signal of limit status for car parking system (output COM,NC,NO).
10.Auto-closing function(adjustable from 3s to 30s,factory default off this function).
Specifications
| Model | WJDZJ |
| Working Temperature | -35℃～+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 180W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 60kgs |
| Speed | 3S, 6S |
| Max boom length | 6 meters |
Why to choose WEJOIN Barrier Gate with Automatic moisture?
1. Barrier Gate with Automatic moisture is a luxury model, specially designed to meet users with high requirements. The LED screen is in the middle of the barrier housing. With a specified software and data wire, you can input the detailed time information like, 20:00, Friday, June 30th 2013. And you can input any words you like, in English and Chinese. This barrier gate also has traffic light indication. Green and Red light remind people whether it can be transited or forbidden to transit.
2. Barrier Gate with Automatic moisture uses the first generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. The clutch of the barrier gate is fixed inside the housing, which can be easily rotate manually without any clutch key; when the power is off, you just need to rotate the clutch by hand to raise the boom. Meanwhile, the exclusive balance device makes the barrier gate work more safely and conveniently.
4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
Common Malfunctions and Solutions
Motor works but there is no reaction on the barrier arm
1. Check up the power supply and the fuse.
2. Check if the remote controller matches the radio receiver;or check up the battery inside and then change it if it is lack of power.
3. Check whether there is disturbance or not.
4. Check up the condition of photocell and loop detector.
