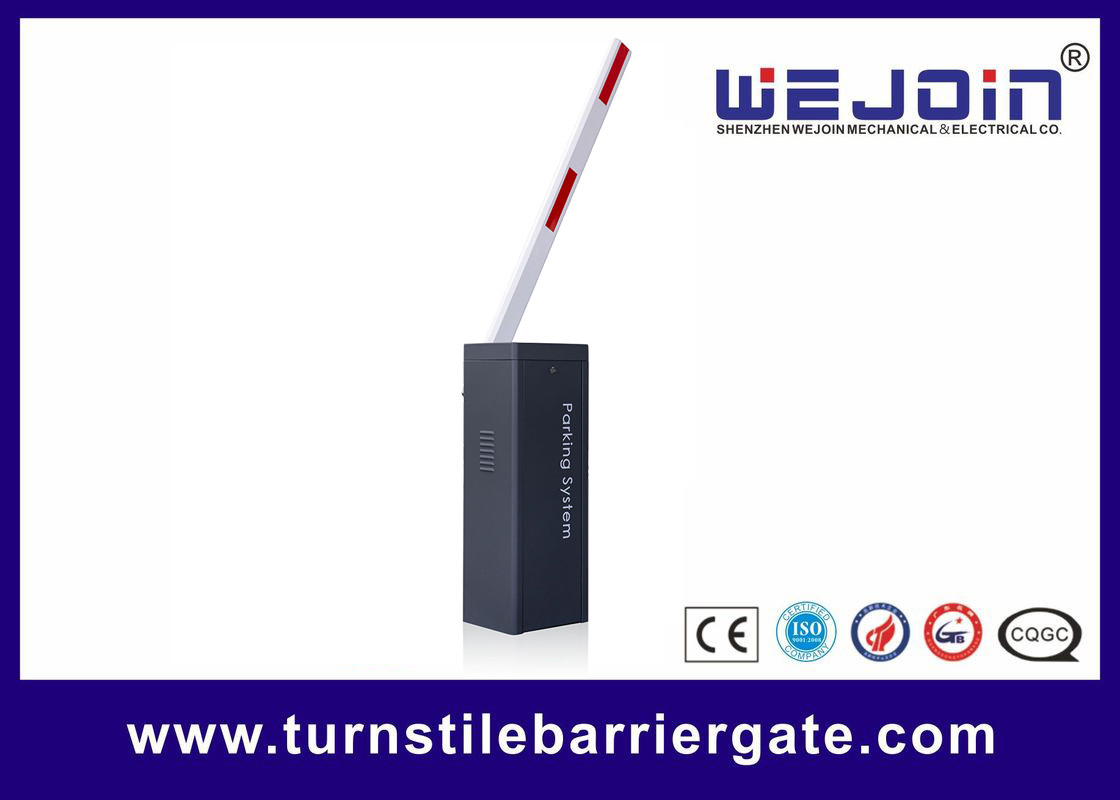

Car Parking Barrier Gate for Residential Area 3S/6S AC Motor
Parking Barrier Gate Quick Detail:
Name:Barrier Gate WJDZJ
Application:Residential Area
Speed:3s,6s
Feature:Straight boom
Rated Power:200W
Certificate:CE, ISO,
Net Weight:60KG
Voltage:AC220V, AC110V
Parking Barrier Gate Description:
Model Selection and Differences(WJDZJ)
Model | Boom Shape | Max Boom Length | Speed |
WJDZ801J-16 | Straight boom | 6m | 6 seconds |
WJDZ801J-13 | Straight boom | 4.5m | 3 seconds |
WJDZ801J-26 | 90 degree, Articulated boom | 5m | 6 seconds |
WJDZ801J-23 | 90 degree, Articulated boom | 3m | 3 seconds |
WJDZ801J-36 | 180 degree, Articulated boom | 5m | 6 seconds |
WJDZ801J-33 | 180 degree, Articulated boom | 3m | 3 seconds |
WJDZ801J-46 | Two-level, fence boom | 4m | 6 seconds |
WJDZ801J-56 | Three level, fence boom | 3.5m | 6 seconds |
Parking Barrier Gate Functions & Features:
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch
(wire control), and traffic light
7. RS485 Communication Module is compatible
Parking Barrier Gate Applications:
Fast Barrier Gate adopts special machine core, fixed boom holder and boom. This barrier gate runs stably. The running time is 3/6 second. It can be used for parking system, factory gate, and so on.
Parking Barrier Gate Specifications
Model | WJDZ801J |
Working Temperature | -40℃～+75℃ |
Voltage | 220V±10%, 110V±10%, 50/60HZ |
Rated power | 200W |
Relative humidity | ≤90% |
Remote control distance | ≥30m |
Net weight | 60kgs |
Speed | 3/6S |
Max boom length | 6 meters |
