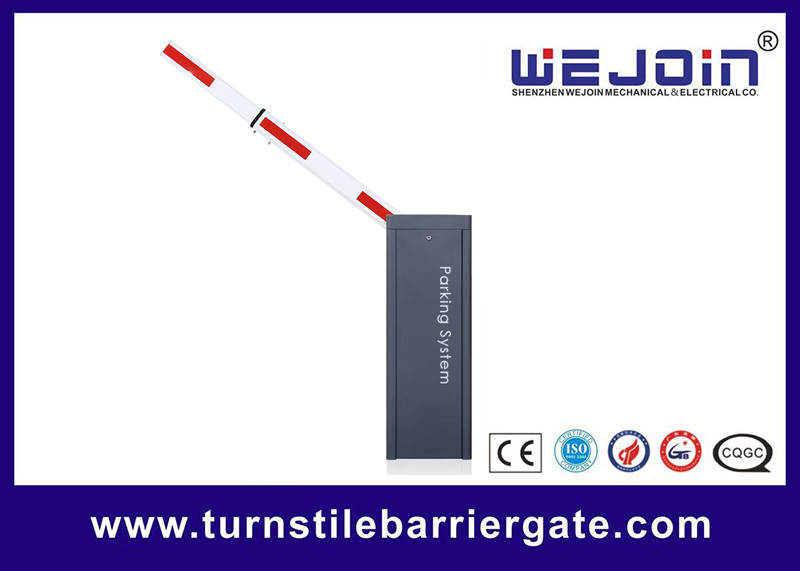

Economical AC motor automatic barrier gate for car parking system
Parking Barrier Gate Technical Data:
|
Voltage |
AC220V±10%,AC110V±10% |
|
Frequency |
50/60HZ |
|
Rated power |
200w |
|
Relative humidity |
≤90% |
|
Working temperature |
-35℃~+60℃ |
|
Housing dimension(W*D*H) |
335*285*925mm |
|
Enclosure rating |
IP54 |
|
MTBF |
2500000 times |
|
Weight |
40 KG |
Barrier Gate Function:
1. Maximum Straight Boom Length: 3s/4.5m, 6s/6m
2 Open the barrier gate by motor wheel when power off ,automatically reset after power on
the operation is stable
3 Wireless remote control control open/close
4 Auto reverse function(force adjustable)
5 Infrared photocells connector is available
6 Loop detector connector is available.
7 Well-integrated with car parking system equipment,with wire control(must be switch signal)
8 Offering dry contact signal for car parking system(COM,NC,NO)
9 Auto-delay when closing(adjustable)
10 RS485 or CAN network communication interface(no need to install module)
11 24V backup battery interface(Can be charged by using solar energy)( optional)
12 Arm open when power off ( add backup battery) (Optional)
13 Anti-collision alarm device( optional)
Boom Barrier Common Malfunctions and Solutions
Motor works but there is no reaction on the barrier arm
