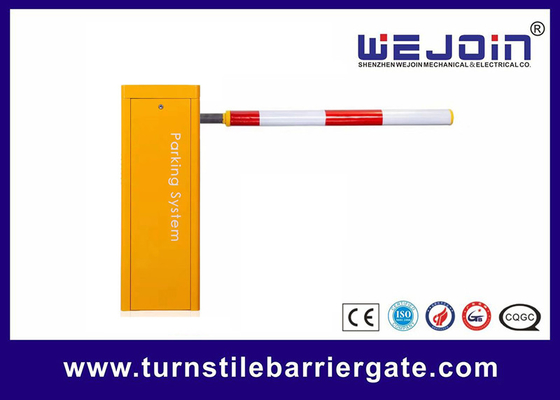

WEJOIN automatic barrier gate for car parking system
Parking Barrier Gate Motor Speed and Boom Type:
|
Model |
speed |
Arm Type |
Max Arm Length |
|
801J-13 |
3s |
Straight (Telescopic arm is optional) |
4.5m |
|
801J-16 |
6s |
6m |
|
|
801J-23 |
3s |
90º folding |
3m |
|
801J-26 |
6s |
5m |
|
|
801J-33 |
3s |
180º folding |
3m |
|
801J-36 |
6s |
5m |
|
|
801J-46 |
6s |
2 fencing |
4m |
|
801J-56 |
6s |
3 fencing |
3.5m |
Barrier Gate Function:
1. Maximum Straight Boom Length: 3s/4.5m, 6s/6m
2 Open the barrier gate by motor wheel when power off ,automatically reset after power on
the operation is stable
3 Wireless remote control control open/close
4 Auto reverse function(force adjustable)
5 Infrared photocells connector is available
6 Loop detector connector is available.
7 Well-integrated with car parking system equipment,with wire control(must be switch signal)
8 Offering dry contact signal for car parking system(COM,NC,NO)
9 Auto-delay when closing(adjustable)
10 RS485 or CAN network communication interface(no need to install module)
11 24V backup battery interface(Can be charged by using solar energy)( optional)
12 Arm open when power off ( add backup battery) (Optional)
13 Anti-collision alarm device( optional)
Service for free:
1. One year free service is supplied(not including the arm and remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customize machine cases, colors, logos for you, which according to your detailed requirements.
5. Technical support and aftersales service, it is a long-term relatioship between us.
6. Price can be negotiable when you have a big order quantity.
