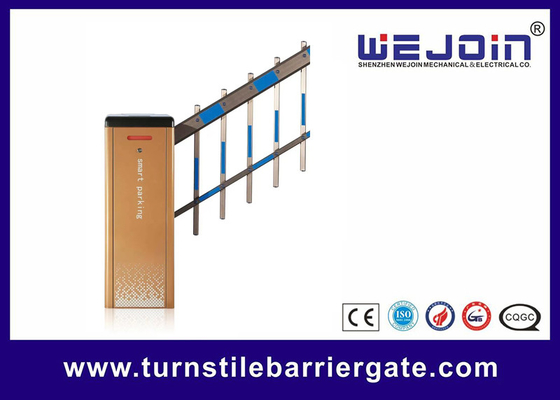

Two Fence 4.5m Boom Length DC24V Brushless DC Motor Parking Barrier

1 set

MOQ

negociate

Price

Two Fence 4.5m Boom Length DC24V Brushless DC Motor Parking Barrier

Features Gallery Product Description Request A Quote

Features

Specifications

Operating Time: 1.5s~6s

Boom Type: Straight Folding Fencing

Housing Material: 304 Stainless Steel

Color: Gold, Black

Application: Parking Lot

Warranty: 1 Year

Highlight:

DC24V Parking Lot Arm Gate

,

4.5m Length Parking Boom Barrier

,

Straight Folding Fencing Parking Barrier

Basic Infomation

Place of Origin: CHINA

Brand Name: WEJOIN

Certification: CE ISO SGS

Model Number: DZE-BL

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 3-5 working days

Payment Terms: T/T, Western Union

Supply Ability: 10000 sets/month

Gallery

Two Fence 4.5m Boom Length DC24V Brushless DC Motor Parking Barrier

Product Description

Two fence 4.5m boom length DC24V brushless DC motor parking barrier

Boom Barrier Basic Features:

1. Safe---the barrier will automatically go back when it meet obstacles during closing.

2. DC Brushless motor is more powerful and no maintenance.

3. Boom can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1.5 seconds to 6 seconds.

4. All the operation process is soft without any noise and shaking.

5. Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other functions.

6. Green light and red light are used inside to indicate the position of the boom.

7. Fan cooling machine reduces the motor temperature by high frequency using, and never get over-heated. Unique temperature calefaction design for low temperature using, prevent freezing in cold weather.

8. Exactitude aluminum alloy die-casting motor base reduces the noise and joint abrasion to prolong the barrier gate working life.

Intelligent Barrier Technical Data:

Input Voltage	AC220V±10%, AC110V±10%
Frequency	50/60HZ
Max Motor Power	200W
Max Motor Speed	40r/min
Working Temperature	-35°C∼+85°C
Enclosure Rating	IP54
MTBF	2,500,000 times
Net Weight	40KGS
Gross Weight	45KGS

Optional Barrier Housing:

Sturdy and strong housing 2.5 mm thickness mild steel, Housing is polished, phosphorized and further finished with plastic coating to ensure long lasting bright colors)

Optional Colors:

We have the following 3 kinds of colors, and you can choose by your request.

Tell me the code of the color on the color board (eg: black is ECH200). And you can also adopt our standard color.

Two Fence 4.5m Boom Length DC24V Brushless DC Motor Parking Barrier 0
