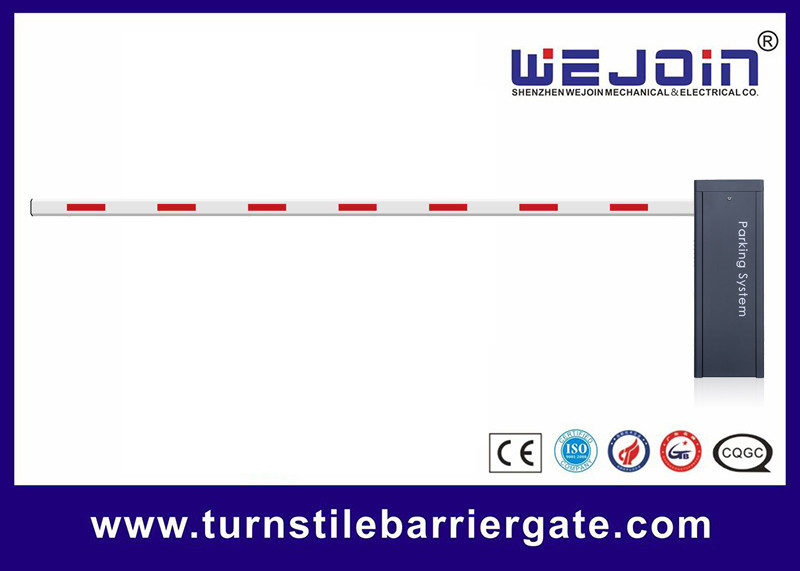

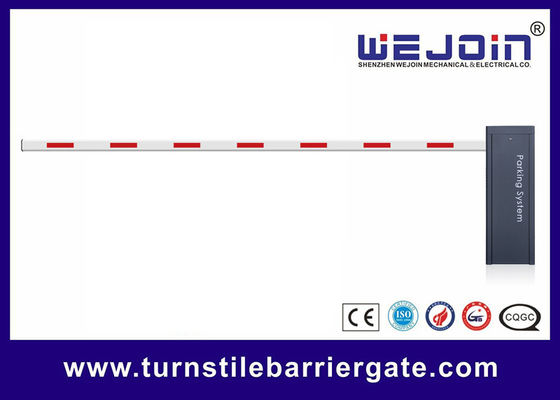

Manual Release 3/6s Car Parking Intelligent Barrier Gate for Park Lot
Quick Detail:
|
Name |
High Speed Barrier Gate |
Application |
Car Park |
|
Speed |
3/6 second |
Feature |
Manual release |
|
Rated Power |
180W |
Certificate |
CE, ISO, |
|
Net Weight |
60KG |
Voltage |
AC220V, AC110V |
Description:
Model Selection and Differences
|
Model |
Boom Shape |
Max Boom Length |
Speed |
|
WJDZJ |
Straight boom |
6m |
6 seconds |
|
WJDZJ |
Straight boom |
4.5m |
3 seconds |
|
WJDZJ |
Straight boom |
3m |
1.5 second |
|
WJDZJ |
90 degree, Articulated boom |
5m |
6 seconds |
|
WJDZJ |
90 degree, Articulated boom |
3m |
3 seconds |
|
WJDZJ |
180 degree, Articulated boom |
5m |
6 seconds |
|
WJDZJ |
180 degree, Articulated boom |
3m |
3 seconds |
|
WJDZJ |
Two-level, fence boom |
4.5m |
6 seconds |
|
WJDZJ |
Three level, fence boom |
4m |
6 seconds |
Functions & Features:
1. Manual release device to operate the barrier when power failure
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible
Specifications
|
Model |
WJDZJ |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
180W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
60kgs |
|
Speed |
3/6S |
|
Max boom length |
6 meters |
