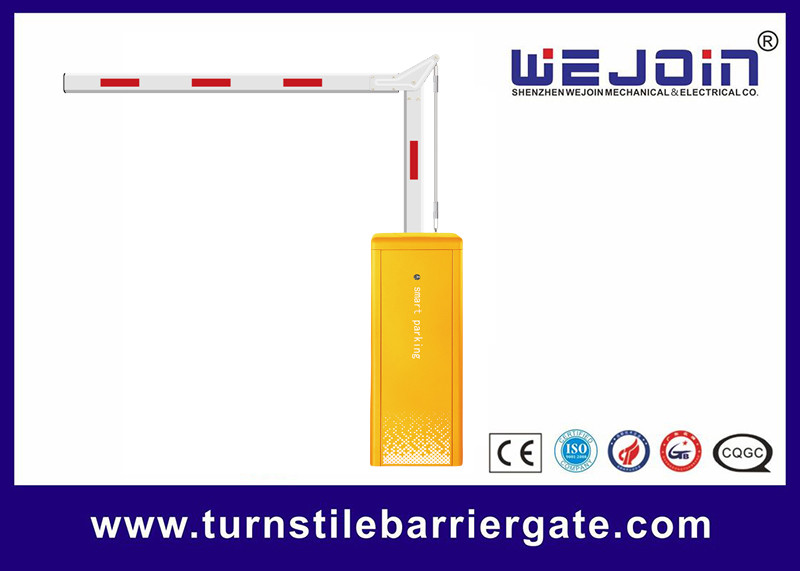

Car parking system Automatic boom barrier road gate for parking lots
Barrier Gate Quick Detail:
|
Name |
Parking Barrier Gate |
Application |
Parking Lots |
|
Speed |
1.5-6 second |
Feature |
Automatic Barrier |
|
Rated Power |
180W |
Certificate |
CE, ISO, |
|
Net Weight |
60KG |
Voltage |
AC220V, AC110V |
Parking Barrier Functions & Features:
1. No clutch design: open the barrier gate by manual handwheel when the power of.
2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
3. Motor cooling fan to avoid the over-heating possibility
4. Automatic reversing when the barrier boom meets the obstruction
5. Auto closing realization through menu setting on the control panel
6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
7. RS485 Communication Module is compatible
Automatic Barrier Applications:
Fast Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.
Car Park Barrier Specifications:
|
Model |
WJDZE-BL |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
180W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
60kgs |
|
Speed |
1.5-6S |
|
Max boom length |
6 meters |
