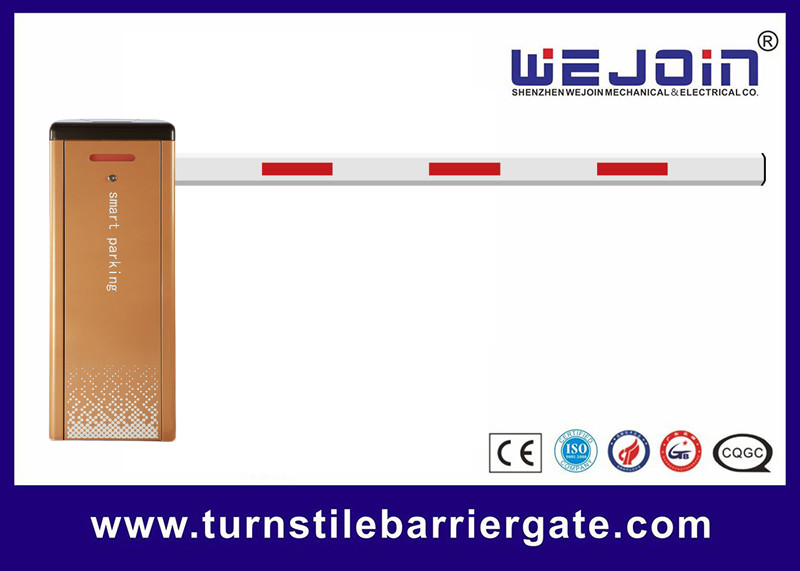

Intelligent Manual Barrier Arm Gates IP44 with Remote Control for Car Parking System
Model Selection and Differences
|
Model Item |
WJDZE-BL |
| Opening Time | 1.5-6S |
| Boom-Type | Straight |
| Boom Length | 6M MAX |
| Voltage | 110V/220V |
| Motor/Power | DC/120W |
| Working Temperature | -35℃ - 75℃ |
| Protection Grade | IP54 |
| Remote Control Distance | 30M |
Functions
1. Auto closing realization through menu setting on the control panel
2. Remote Control Frequency: 418MHz, 433MHz
3. Manual release device to operate the barrier when power failure
4. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
5. Motor cooling fan to avoid the over-heating possibility
6. Automatic reversing when the barrier boom meets the obstruction
7. Supports the infrared photocell for anti-bumping function (optional)
8. Supports the external and internal vehicle loop detector (optional)
9. RS485 communication module (optional)
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch
13. Boom with LED light (the color is changeable with remote control)
14. Cabinet with traffic light
Why choose WEJOIN Bi-directional Barrier Gate?
1. Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Besides the LED, the boom is also installed with rubber below, which not only indicates the transit situation but also protects the vehicle from hitting.
2. Barrier Gate with LED boom uses the third generation motor. It is stable and has a long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness and painted so that the barrier can be used indoor and outdoor.
3. Special barrier core makes its installation direction adjustable. Also, the barrier works well with the barrier can be changed booms with different lengths, without changing its spring. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrians and vehicles. A manual release device can operate the barrier when power failure.
4. WEJOIN has sub-companies to produce and process almost all accessories. Besides standard producing, we offer OEM service in the meanwhile.
