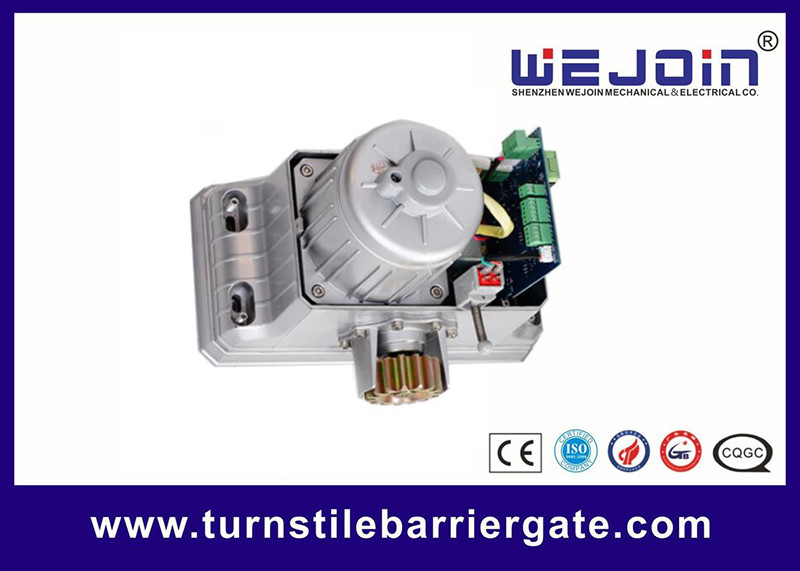

easy operator heavy duty ac motor automatic gate motor sliding
Functions & Features
1) Magnetic switch limit
2) Aluminum alloy Gear Box
3) Thermal protection at 125°c built in motor winding
4) In case of power failure, the gate can be opened and closed manually after release clutch
5) Protection class IP44
6) Operating environment temperature -20°c ~ + 50°c
7) Option: Photocell, Alarm Lamp
Electronic Data
|
Model |
KMP202 |
|
Soft start |
YES |
|
Stop on obstacle (sensitivity adjustable) |
YES |
|
Auto warming-up (at freezing temperature) |
YES |
|
Remote control |
418MHz (50m, approx) |
|
Wire control |
Available |
|
Auto closing |
YES |
|
Vehicle loop detector socket |
YES |
|
Photocell socket |
YES |
|
Alarm light socket |
YES |
Motor base and it's installation
1. Motor base installation: set the installation position of the base tray according to the size of the motor and the height of the installation position of the gear rack. Then Embed the bolts in advanced or use the expansion bolts to embed the base into the cement foundation.
2. If the gear rack has already been installed, fix the motor to th base and turn the clutch with the clutch key to the off position, then make the gear of the motor suit right to the gear rack, then the position of the base can be set. Take off the motor and fix the base.
Rack installation
Make the gear of the gear rack towards the floor. Make the gear of the rack fit the gear of the motor. Fasten the gear rack to the door with the screws. Push the gate and make it move the whole route Fasten the gear to the gate after assuring that the gate run smoothly the whole route.
Rack is usually installed piece after piece. To avoid dithering or blocking, please adjust the gap of the gear rack. We suggest one way( refer to Fig-3): fix up the rack1 and rack after adjusting the two racks with the small adjusting rack.
