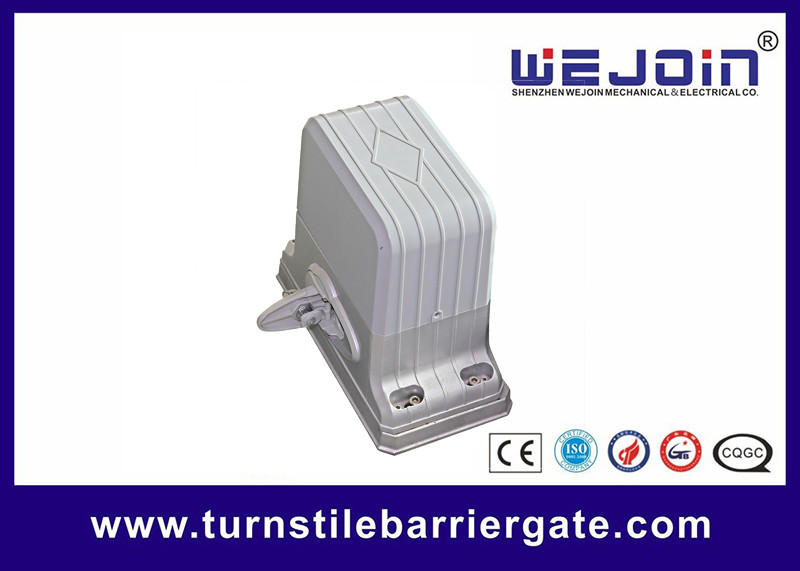

Sliding door motor / Automatic sliding gate operators AC Motors
Detailed introduction for Sliding door motor:
1.The Silding gate operator with exquisite appearence,the main body of the machine,adopting high quality aluminum alloy through spray painting and die casting treatment,is firm and hard.
2.The motor is powerful,starts smoothly,has big torque and low noise ,and is smooth and reliable when operating.
3.With built-in themal protection(the motor will automatically cut off power supply for protection when the motor heat up to rated temperature).
4.The circuit has the funcations of electronic infrared ray collision prevention and electronic reversion when meeting obstacle so as to ensure pedestrians' safety.
5.Installation is simple,easy maintenance.
Motor base and it's installation
1. Motor base installation: set the installation position of the base tray according to the size of the motor and the height of the installation position of the gear rack. Then Embed the bolts in advanced or use the expansion bolts to embed the base into the cement foundation.
2. If the gear rack has already been installed, fix the motor to th base and turn the clutch with the clutch key to the off position, then make the gear of the motor suit right to the gear rack, then the position of the base can be set. Take off the motor and fix the base.
Motor installation
1. Put the motor on the base, fix up the motor with hexangular screws.
2. Loosen the four screws on the outer shell and remove the shell Connect the wire according to the electric diagram. After debugging, install the shell and fix it with bolts.
Electronic Data
|
Model |
KMP202 |
|
Soft start |
YES |
|
Stop on obstacle (sensitivity adjustable) |
YES |
|
Auto warming-up (at freezing temperature) |
YES |
|
Remote control |
418MHz (50m, approx) |
|
Wire control |
Available |
|
Auto closing |
YES |
|
Vehicle loop detector socket |
YES |
|
Photocell socket |
YES |
|
Alarm light socket |
YES |
