Automatic Electric Sliding Gate Operator Opener for 1800kg Door Remote Control
Motor Data
Model: KMP 202
Voltage: 220V±10%, 110V±10%
Frequency: 50/60Hz
Current: 2.7A, 5.8A
Motor voltage: AC 220V/110V
Capacitor: (220V) 20µF, 60µF+14µF
Power: 350W
Torque: 35nm
Motor number: M=4
Motor speed: 1350rpm, 1620rpm
Gear speed: 58.8rpm, 70.2rpm
Travel speed: 11m/min, 13.2m/min
Working temperature: -40°c~ 55°c
Overload protection temperature: 130
Relative humidity: ≤90%
Motor making technique: die casting aluminum alloy
Manual Release: yes
Remote distance: >30m
Product weight, approx: 10.19kg, 10.25kg
Max, weight of gate: 1800kg
Control panel main features
1. Single button can finish all the control command(such as close,open,stop.)
2. Can adjust the resistance of motor
3. Can program the time of auto close
4. Can set auto close when restored power after power off
5. Have the terminals for photocell, loop detector,IC card reader ,alarm light etc
6. Can much 30 remote controls at most
Sliding gate motor specification
1. The integrated structure of mechanical parts, electronic parts, and the built-in control panel, do not need any external controller;
2.When the power failure, the use of keys to release the clutch, push door manually.
3.Door automatically stop and re-open the encountered an obstacle
4. The automatic closing time can be adjusted from about 3-120 seconds
5.Good design, heavy use of copper motor (many vendors use aluminum motor), copper worm gear,
6.Ac motor wiring and convenient.
7.Communication system has 500 kg, 1000 kg, 1500 kg is optional

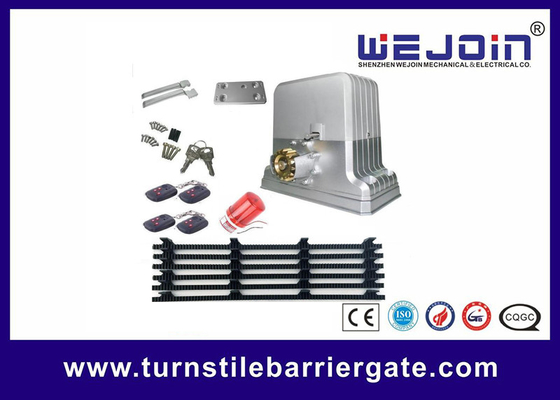

One set include:
1 x Motor with built in Control Panel
2 x Remote Controls
2 x Manual Override Keys
1 x Motor mounting base plate
Main Features:
1.) Totally integrated electrical mechanical system (excludes racks)
2.) Control board interface for optional impact-proof infrared photocells
3.) Alarm lamp interface
4.) Automatic delayed closing
5.) Adjustable resistance sensitivity
6.) Auto gate stop and re-open when an obstacle is encountered
7.) Wireless remote control or wired remote control are optional
