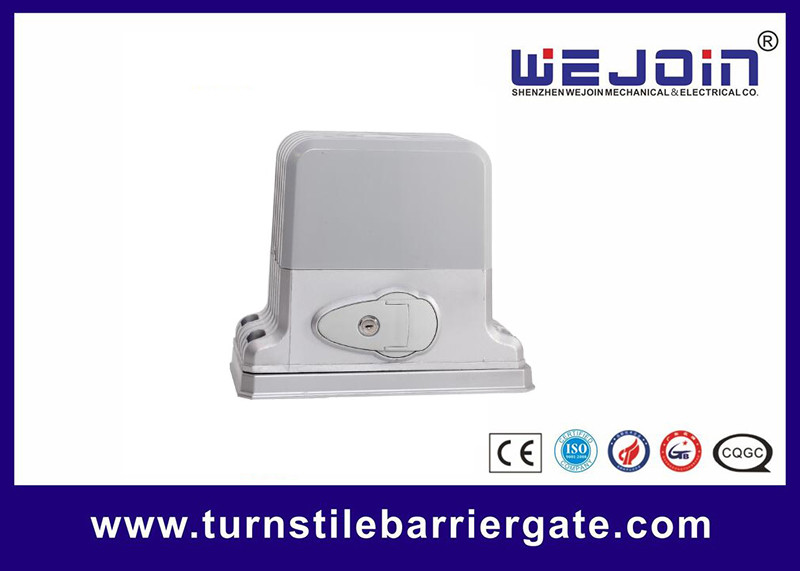

1800kg small automatic gate motors with gear rack and pinion
Functions of sliding gate operator
1. The structure of integrated mechanic part and electronic part with built-in control panel, no any external controllers needed;
2. DC motor,Can install transformer and back up battery inside
3. Soft-start &soft-stop,can avoid some accidents due to suddenly open or stop
4. When power failure , use a allen key to release clutch,and push the door manually.
5. Gate auto stop and re-open when an obstacle is encountered
6. Auto close time can be adjusted from approximately 3 to 120seconds
Features of control panel
1. Single button can finish all the control command(such as close,open,stop.)
2. Can adjust the output power of motor
3. Can adjust the working time of motor
4. Can program the time of auto close
5. Can set auto close when restored power after power off
6. Have the terminals for photocell, loop detector,IC card reader,alarm light etc
7. Can marth 20 remote controls at most
Each Sliding Gate Operator Includes
Name | Quantity | Unit | Remark |
Sliding gate operator | 1 | set | Necessary |
Remote control | 2 | pcs | Necessary |
Internal hexangular bolt | 4 | pcs | M8*40 |
Internal hexangular bolt | 4 | pcs | M6*16 |
Left limit iron | 1 | pcs | Necessary |
Right limit iron | 1 | pcs | Necessary |
Base board | 1 | pcs | Necessary |
Release key | 2 | pcs | Necessary |
Manual | 1 | pcs | Necessary |
Infrared photocell | 1 | set | Optional |
Radio emitter | 1 | set | Optional |
Advantages
1. Intellectualized soft start and soft stop
2. Built in Adjustable auto-close
3. Secure rolling code for the remote
4. Stop/Reverse in case of obstruction
5. Emergency release key in case of power failure
6. 24v low safety voltage
7. Built in Max motor running time(MRT) for multiple safety protection
8. Convenient midway mode
9. Electromagnetism limit switch.
Motor base and it's installation
1. Motor base installation: set the installation position of the base tray according to the size of the motor and the height of the installation position of the gear rack. Then Embed the bolts in advanced or use the expansion bolts to embed the base into the cement foundation.
2. If the gear rack has already been installed, fix the motor to th base and turn the clutch with the clutch key to the off position, then make the gear of the motor suit right to the gear rack, then the position of the base can be set. Take off the motor and fix the base.
