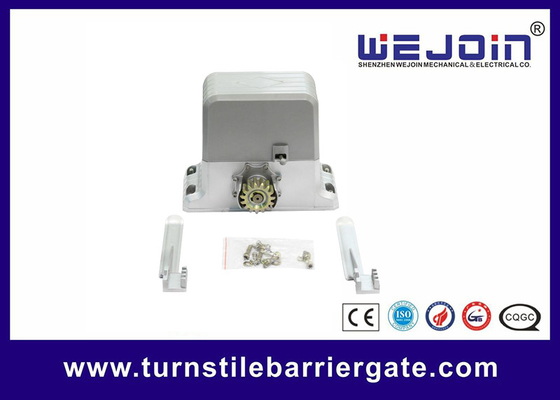

AC 220V/110V Max weight 1800kgs automated gate motors for sliding gate
Products Features:
1. The operator is composed of motor, gearbox, manual release mechanism and control system.
2. Using high efficiency worm reducer, large speed ratio, high efficiency, low power, safety and good
self-locking.
3. The operator is oil submerging ,good lubrication, low noise, long use life.
4. The built-in control system with remote control, manual control, limiting accurate, convenient adjustment.
5. The motor with thermal protection and overload automatic shutdown protection function.
6. Nice design, beautiful appearance, compact structure, small volume.
7. The suitable working environment temperature is between -40 ℃~ +55 ℃, IP54 protection class with stable performance and safety.
8. Some customized special specifications for customer request.
Specifications
|
Model |
WJKMP202 |
|
|
Voltage |
220V±10% |
110V±10% |
|
Frequency |
50HZ |
60HZ |
|
Current |
2.7A |
5.8A |
|
Motor voltage |
AC220V / 110V |
|
|
Output Power |
350W |
|
Motor base and it's installation
1. Motor base installation: set the installation position of the base tray according to the size of the motor and the height of the installation position of the gear rack. Then Embed the bolts in advanced or use the expansion bolts to embed the base into the cement foundation.
2. If the gear rack has already been installed, fix the motor to th base and turn the clutch with the clutch key to the off position, then make the gear of the motor suit right to the gear rack, then the position of the base can be set. Take off the motor and fix the base.
Our Services
Pre-sales Service
After-Sales Service
7*24 online service
One year warranty
View our factory
Training how to install and use the machine
OEM orders are welcomed
Engineers available to service machinery overseas
FAQ
Q1: What is Minimal order quantity?
A1: No MOQ. One PC of Sample is available. Would advice deliver by Express such as DHL, FEDEX, TNT, etc.
Q2: How about your quality control?
A2: Each motor with quality control (testing) before packing. IQC, IPQC,PQC, FQC, all are tested.
Q3: Any certificate you have?
A3: CE, IS9001.
