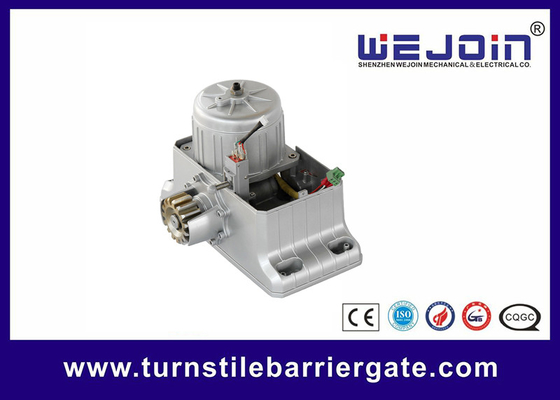

ac control board automatic sliding gate opener heavy duty for door
Debugging
1). Check the electric connections to make sure that the wiring has been connected well. Turn the power on and make the motor run itself. Send an"open "signal, then observe whether the rotational direction of the gear is the same as the direction of opening the gate. If not, send a"stop "signal to make the motor stop running and then rotate the direction adjustment switch to adjust the running direction of the motor. Send an"open "signal again, make ure the rotation are of the same. then send a"stop "signal to stop the motor. Adjust the closing direction in the same way.
2). Adjustment of the limit switch. Send an"open "signal, press the limit switch towards the direction of opening the gate, observe whether the motor is stopped and limited. if not, rotate the limit adjustment switch to adjust again to make sure the opening limit switch functions. Then send a"close "signal, adjust the closing limit switch in the same way.
3). Check whether the gate is fixed well. Rotate the key of the clutch to opening direction according to the tips on the cover of the lock. Move the gate back and forth through the route by hand to see if it runs well or blocked. If the gate not move freely, adjust the position of the motor or the rack until it runs freely.
4). Close the clutch, if the gate runs in the opening direction, it can not respond to the CLOSE command, but can respond to the STOP,OPEN and LIMIT CLOSING command. If the gate runs in the closing direction, it cannot respond to the OPEN, STOP, LIMIT CLOSING and LIMIT OPENING command. but the OPEN and LIMIT CLOSING direction light are on.
Instruction of use
1). After checking and debugging all the parts, fix up the motor shell. close the clutch and the cover of the lock hole.
2). When the power is cut off, open the clutch. Then move the gate manually. When the power is on, close the clutch and run it b electricity.
