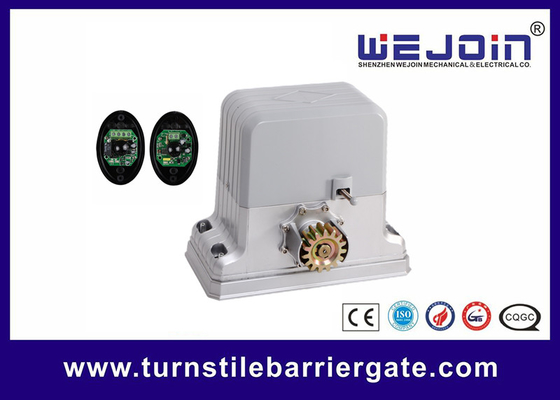

220V AC Heavy Duty Sliding Gate Motor Automatic Electronic Soft Start CE Approval

220V AC Heavy Duty Sliding Gate Motor Automatic Electronic Soft Start CE Approval

Functions

1. Integrated electromechanical design
2. Electronic soft start
3. Reversing on obstacle
4. Infrared photocell socket
5. Alarm light socket
6. Wires control and remote control
7. Delay closing
8. Reversing sensitivity adjustable
9. Bus-mastering (various operation ways)
10. Automatic warm-up

Electronic Data

Soft start: YES

Stop on obstacle (sensitivity adjustable): YES

Auto warming-up (at freezing temperature): YES

Remote control: 418MHz (50m, approx)

Wire control: Available

Auto closing: YES

Vehicle loop detector socket: YES

Photocell socket: YES

Alarm light socket: YES

Motor Data

Rack installation
Make the gear of the gear rack towards the floor. Make the gear of the rack fit the gear of the motor. Fasten the gear rack to the door with the screws. Push the gate and make it move the whole route Fasten the gear to the gate after assuring that the gate run smoothly the whole route
Rack is usually installed piece after piece. To avoid dithering or blocking, please adjust the gap of the gear rack. We suggest one way( refer to Fig-3): fix up the rack1 and rack after adjusting the two racks with the small adjusting rack.

Notice

1) The working voltage is 10% of the rated voltage, use power regulator if in area of volatile supply voltage.

2) The gear modulus: M=4 Gear scalar: Z=15. Please use the correspondent rack.
3) The gate should be balanceable and level. So the gear and rack can fix well.
4) The gap between gears should be fi gate operator can move smoothly.
