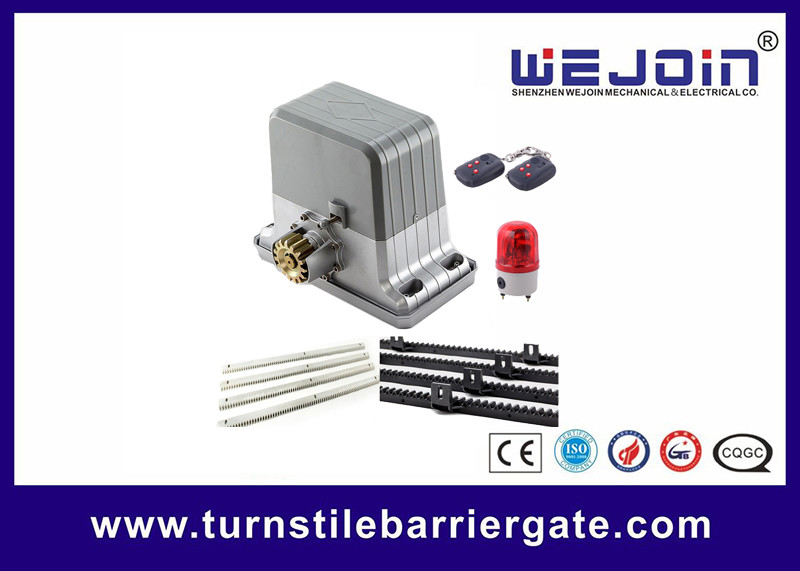

easy electric automatic sliding gate motor gear speed remote control
Function and Features
1. Integrated structure of the mechanic and electron. No need to install other controllers.
2. Electronic soft-start.
3. Automatically restraining when meets obstacle.
4. Crash proof and automatically restraining socket.
5. Crash proof (photocell).
6. Alarm light socket.
7. Line control and Remote control are optional.
8. Intelligent automatic heating function.
9. Automatically increase the temperature when the temperature is below 0 degree.
Function of release
When the release is opened, we can push the gate by hands, when the release is closed, the gate can be opened or closed by electricity and stop automatically when meets the limit iron.
Installation of photocell
1. Loosen the screws and take off the water-proof cover.
2. Put photocell signal wire and power wire through the hole of the base. Connect the wire according to the electric diagram.
3. Fix the photocell base with screws to appointed position4. Put on the top lid and fasten it with screws.
Maintain
I. The antifreeze lubricant oil has been applied to the sliding gate operator. There is no need to add the oil before using.
2. After using the sliding gate operator for one month, please check the antifreeze lubricant oil Ifit needs to be changed, please change the oil with the same type. Then check the oil every year Ifthe oil turns bad, change the oil with the same type.
3. After using the gate operator for some time, please check if any parts are loose. If they turn loose, please tighten them.
Service Item
1. One year maintenance services provided free of charge
2. Life-long repairing with charge offered.
3. Technical support
