heavy duty ac motor for auto gate sliding 1800KG with gear rack
Product Profile

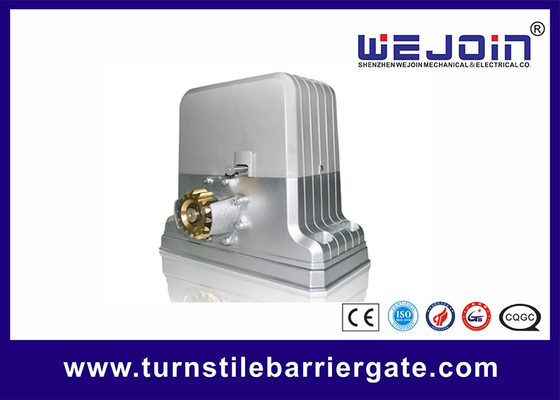

This is a conventional sliding gate operator, with brand-new design, brand-new clutch structure, fashionable exterior design and brand-new control technique, making the motor more humanistic.
Furthermore, the integrated electromechanical design and the streamlined appearance also make our product look more fashionable and elegant.
Motor base and it's installation
1. Motor base installation: set the installation position of the base tray according to the size of the motor and the height of the installation position of the gear rack. Then Embed the bolts in advanced or use the expansion bolts to embed the base into the cement foundation.

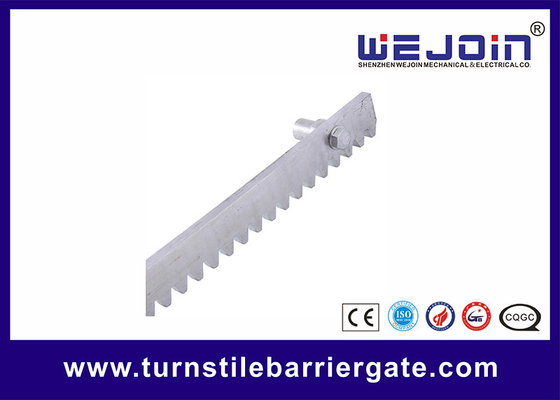

2. If the gear rack has already been installed, fix the motor to th base and turn the clutch with the clutch key to the off position, then make the gear of the motor suit right to the gear rack, then the position of the base can be set. Take off the motor and fix the base.
Motor installation
1.Put the motor on the base, fix up the motor with hexangular screws.
2.Loosen the four screws on the outer shell and remove the shell Connect the wire according to the electric diagram. After debugging, install the shell and fix it with bolts.
Modor Data
|
Model |
WJKMP202 |
|
|
Voltage |
220V±10% |
110V±10% |
|
Frequency |
50HZ |
60HZ |
|
Current |
2.7A |
5.8A |
|
Motor voltage |
AC220V / 110V |
|
|
Capacitor |
20μf |
60μf +14μf |
|
Output Power |
350W |
|
|
Absorbed power |
594W |
638W |
|
Torque |
35nm |
|
|
Mode number |
M=4 |
|
|
Motor speed |
1350rpm |
1620rpm |
|
Reduction ratio |
23:1 |
|
|
Gear speed |
58.5rpm |
70.2rpm |
|
Travel speed |
11m/min |
13.2m/min |
|
Working temperature |
-40°C∼ +55°C |
|
|
Overload protection temperature |
130°C |
|
|
Motor making technique |
Die casting aluminum alloy |
|
|
Manual Release |
Yes |
|
|
Product weight(approx) |
10.19kg |
10.25kg |
|
Max.weight of gate |
1800kg |
|
