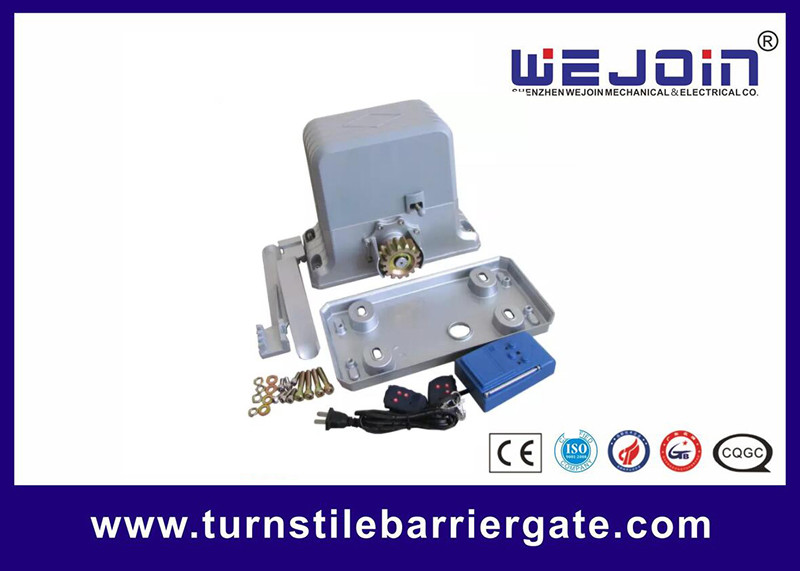

heavy duty automatic opener system gear Driven for sliding door
Troubleshooting
1.The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the position of the limit iron.
2.Crash proof is not effective.
A Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop detector is right.
3.When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check whether it works well.
Notice
1) The working voltage is 10% of the rated voltage, use power regulator if in area of volatile supply voltage.
2) The gear modulus: M=4 Gear scalar: Z=15. Please use the correspondent rack.
3) The gate should be balanceable and level. So the gear and rack can fix well.
4) The gap between gears should be fi gate operator can move smoothly.
5) The rail should be embedded right. The wheel of the gate should be right and installed well. These are key points for the gate running well. Adjust the bolts which can make the gate operator up or down to make the gear fit the rack well. Make sure that the gate can be moved by an adult when the clutch is opened.
6) Make sure the running direction of the gate operator. The limit iron should be fixed at the right position, otherwise limit doesn't work and then the motor will be stocked and out of control.
Electronic Data
|
Model |
KMP202 |
|
Soft start |
YES |
|
Stop on obstacle (sensitivity adjustable) |
YES |
|
Auto warming-up (at freezing temperature) |
YES |
|
Remote control |
418MHz (50m, approx) |
|
Wire control |
Available |
|
Auto closing |
YES |
|
Vehicle loop detector socket |
YES |
|
Photocell socket |
YES |
|
Alarm light socket |
YES |
