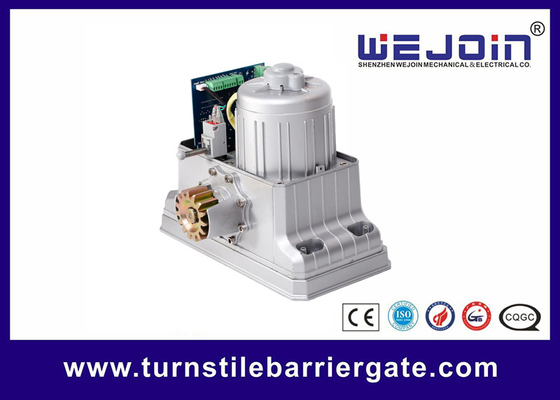

heavy duty ac motor for gate sliding 1800kg max.weight of gate
Products Features:
1. The operator is composed of motor, gearbox, manual release mechanism and control system.
2. Using high efficiency worm reducer, large speed ratio, high efficiency, low power, safety and good
self-locking.
3. The operator is oil submerging ,good lubrication, low noise, long use life.
4. The built-in control system with remote control, manual control, limiting accurate, convenient adjustment.
5. The motor with thermal protection and overload automatic shutdown protection function.
6. Nice design, beautiful appearance, compact structure, small volume.
7. The suitable working environment temperature is between -40 ℃~ +55 ℃, IP54 protection class with stable performance and safety.
8. Some customized special specifications for customer request.
Debugging
Three means to your safety: loop detector, photocell, crash proof. When the gate is opening, these three functions can not be applied. When the gate is closing and meets some obstacles, the direction lights of the opening and closing limit are on at the same time and then turn to opening limit. When the signal of the infrared photocell is cut, the gate will turn to the opening limit and open till the direction light of the opening limit is on all the time. When there is a signal to the loop detector, the gate will open for 10 seconds and then close automatically. You can adjust the crash proof sensitivity on the control panel. Rotate the clockwise, the sensitivity will be higher.
Electronic Data
|
Model |
KMP202 |
|
Soft start |
YES |
|
Stop on obstacle (sensitivity adjustable) |
YES |
|
Auto warming-up (at freezing temperature) |
YES |
|
Remote control |
418MHz (50m, approx) |
|
Wire control |
Available |
|
Auto closing |
YES |
|
Vehicle loop detector socket |
YES |
|
Photocell socket |
YES |
|
Alarm light socket |
YES |
Service Item
1. One year maintenance services provided free of charge
2. Life-long repairing with charge offered.
3. Technical support
