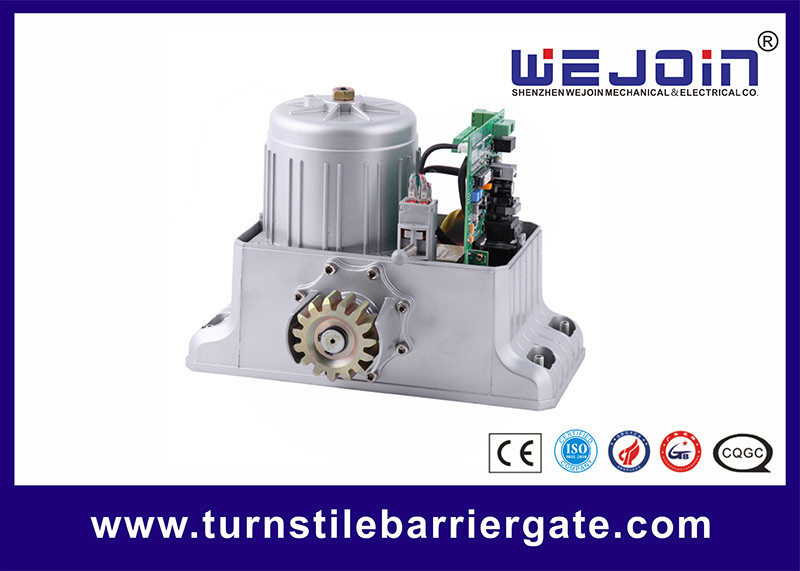

Soft Start Motorized Gate Opener Sliding , Electric Gate Operators Delaying Closing
Functions & Features
1. Integrated electromechanical design, no need additional control
2. Electronic soft start
3. Reversing on obstacle
4. Anti-bumping and auto backtracking socket
5. Infrared photocell socket
6. Alarm light socket
7. Wires control and remote control
8. Delaying closing
9. Automatic warm-up
Technical Data
|
Model |
MP202 |
|
|
Voltage |
220V±10% |
110V±10% |
|
Current |
2.7A |
5.8A |
|
Absorbed power |
594W |
638W |
|
Working temperature |
-35℃～+85℃ |
|
|
Relative humidity |
≤90% |
|
|
Remote control distance |
≤50M |
|
|
Mode number |
M=4 |
|
|
Gear Speed |
58.5rpm |
70.2rpm |
|
Torque |
35NM |
|
|
Max weight of gate |
1800kg |
|
|
Travel speed |
11m/min |
13.2m/min |
|
Reduction ratio |
23:1 |
|
|
Overload protection temperature |
130℃ |
|
Packing list
Name Qty Unit Remark
Sliding gate operator 1 Set

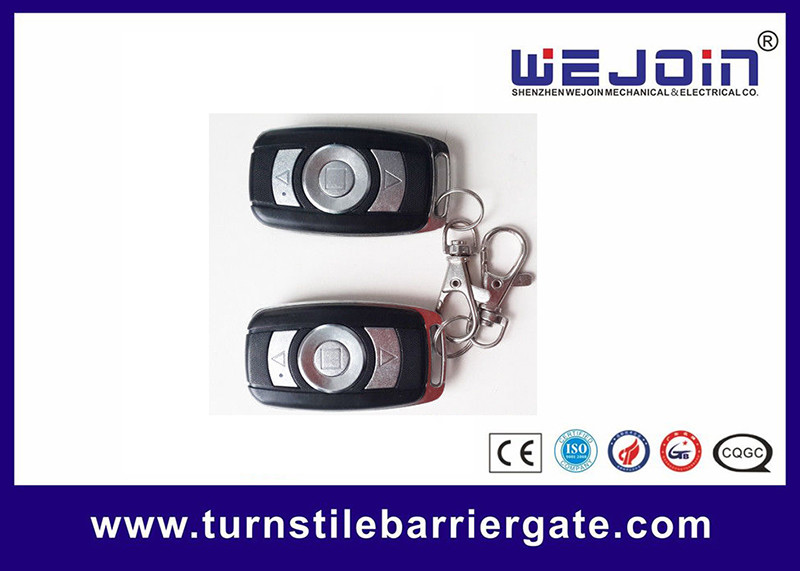

Remote controller 2 Pcs
Internal hexangular bolt 4 pcs M8X40
Internal hexangular bolt 4 pcs M6X16
Left limit iron 1 pcs
Right limit iron 1 pcs
Base 1 pcs
Release Key 2 pcs
Manual 1 pcs
WEJOIN Profile
Founded in March 2004, Shenzhen WEJOIN Mechanical & Electrical Co. is a national high-tech enterprise specialized in R&D, production and sales of intelligent access control products. It has nearly 200 patented technologies.
Since 2017, Shenzhen WEJOIN has invested heavily in building intelligent robot production lines. By the end of 2018, it has formed nearly 30 intelligent robot production lines with more than 160 sets of equipment. It has officially entered a new era of intelligent manufacturing, realizing the automation of precisely die-casting, accessories processing, whole assembly, packaging, etc,. The comprehensive automation rate is more than 75%, of which more than 90% of the spare parts are produced by intelligent robots, assuring the consistency and stability of the product quality. WEJOIN has an annual production capacity of 300,000 units barrier gates through intelligent products and intelligent manufacturing of “double intelligence” to help the industry develop steadily.
